ECS KN1SLI Extreme (nVidia nForce4 SLI)

ECS KN1SLI Extreme (nVidia nForce4 SLI)
Author: Aleksandr Mitrofanov
Date: 19.09.2005

BIOS

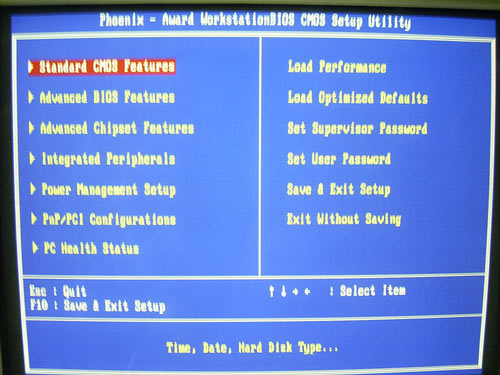

The BIOS of ECS KN1SLI Extreme is built on the Award BIOS Phoenix version.


ECS KN1SLI Extreme (nVidia nForce4 SLI)

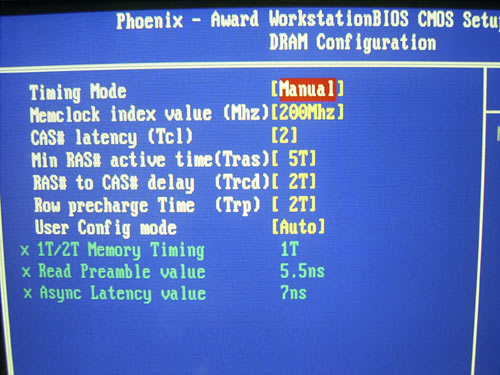

The memory settings are gathered in the "Advanced/DRAM Configuration" section:


ECS KN1SLI Extreme (nVidia nForce4 SLI)

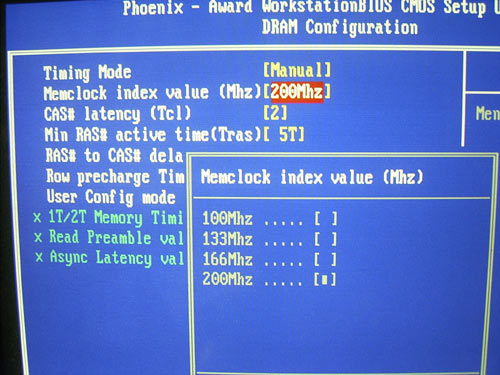

In this section, there is a parameter in charge of selecting the memory operating frequency:


ECS KN1SLI Extreme (nVidia nForce4 SLI)

It should be noted that during the tests we had nothing to complain about the compatibility of the motherboard to varied memory modules. Now move on to the section to do with the system monitoring.


ECS KN1SLI Extreme (nVidia nForce4 SLI)

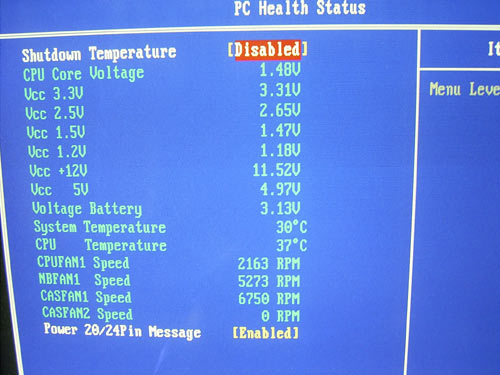

The board is able monitoring the current temperature of the processor and system, voltage levels, as well as the rotational speeds of the four (of five) fans. Unfortunately, missing is the feature for adjusting the rotational speed of the cooler depending on the processor temperature.

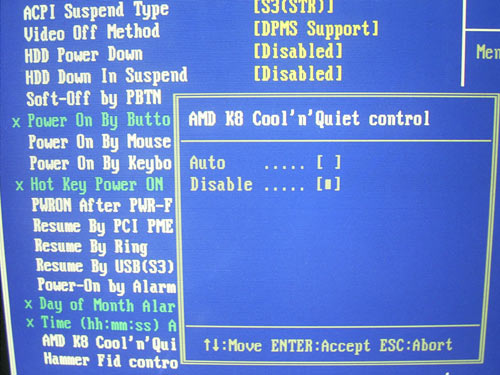

As regards the support for Cool'n'Quiet, it is there:


ECS KN1SLI Extreme (nVidia nForce4 SLI)
