Tul AX480A-GF (ATI Xpress 200P)
Overclocking and stability
As regards overclocking, I am repeating it
again that the current version of the BIOS is somehow restricted in its
capabilities. The user gets the feature for adjusting the multiplier
(which works only towards the reduction, as we know).
the feature for selecting the HTT speed (or
FSB).
The HTT adjustment range varies within 200
to 320 MHz. Besides, the user can raise voltage on the processor within
0.8V to 1.55V in 0.025V increments.
The board does not support features like
adjustment of voltage on the memory, chipset, and the PCI Express bus.
Nor there is a feature for adjusting the HyperTrasport bus speed, which
somehow confused me. However, practical tests in overclocking have
shown that we don't need to worry about - the board was running fine up
to HTT = 274MHz.
Evidently, the HT multiplier is set up
automatically (but it's quite probable that in future BIOS versions it
will be there as a separate parameter).

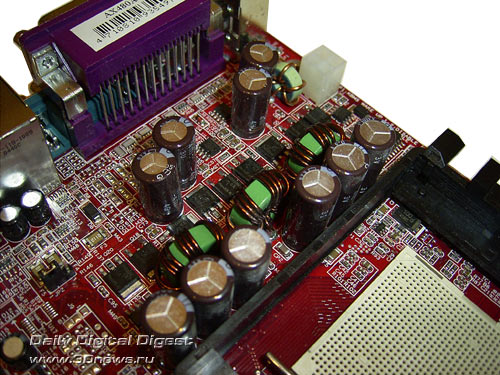

A few words on the power supply module in
Tul AX480A-GF which uses a 3-phase scheme and has six 3300 mkF and four
1500 mkF capacitors.
 |
